High-brightness fixed-install outdoor displays.
Each series ships in several standard model variants, so you can match the screen to your space, resolution and budget.
A pixel pitch from 4 keeps text, images and video crisp even at close viewing distance — built for demanding indoor and outdoor content.
Cabinet and module dimensions are engineered for straightforward layout, installation and maintenance on site.
Designed for outdoor advertising, facades and public spaces exposed to weather — backed by an experienced LED engineering team in Shenzhen.
Every system is backed by our service commitment — warranty, technical support and spare parts for long-term operation.
Directly from the DS Visual product catalog.
| 像素点间距（mm） | 4 |

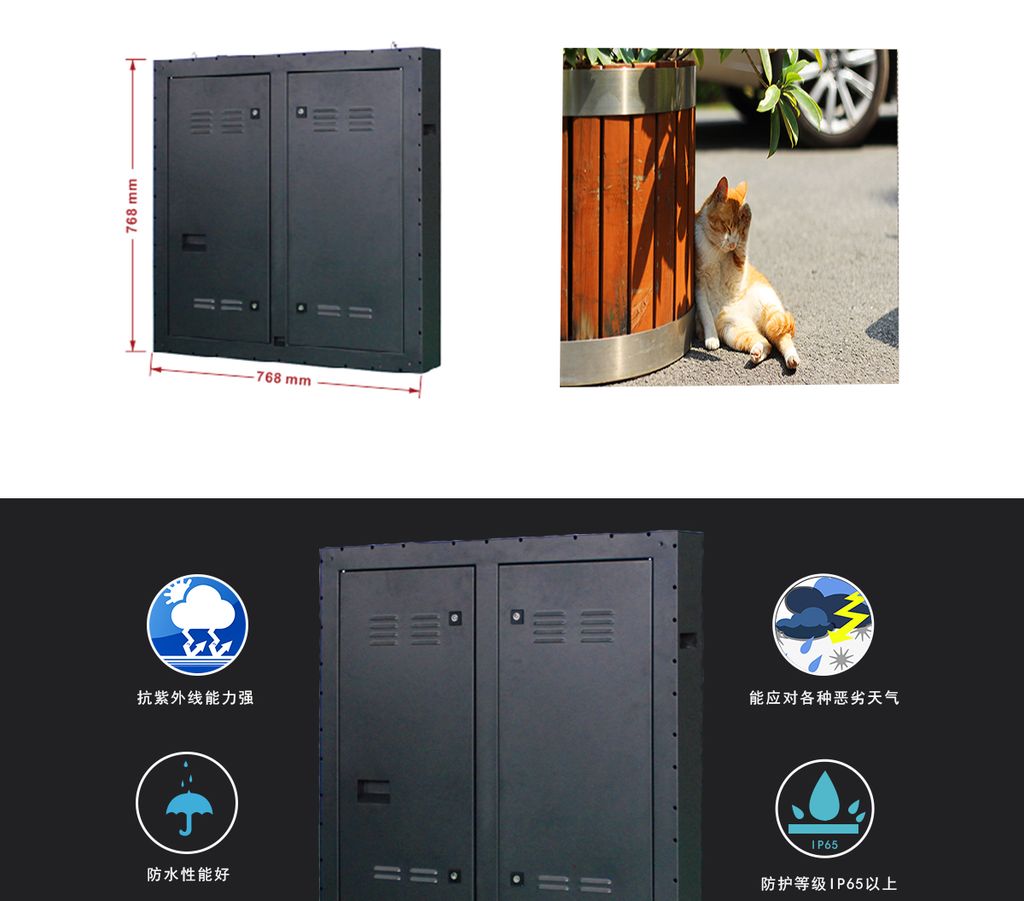

| 箱体尺寸（mm） | 768*768（可定制） |
| 箱体材质 | 钣金 |
| 箱体重量（kg/pcs） | |
| 白平衡亮度 | 600-1000cd |
| 最大功耗(W/㎡) | 900 |
| 平均功耗(W/㎡) | 255 |
| 维护方式 | 后维护 |
| 视角（度） | 水平140，垂直120 |
| 灰度等级（Bit） | 16 |
| 对比度 | 8000：1 |
| 色温（K） | 2000K≤TC≤10000K可调 |
| 亮度调节 | 智能程控/手动程控 |
| 亮色校正 | 单点全色域校正 |
| 平整度 | ＜0.5mm |
| 其它参数 | 双冗余备份、温湿度检测、外接信号等 |
