U2 HD LED display series

Front Service: (W)600mm×(H)337.5mm×(D)68mm

After Service: (W)600mm×(H)337.5mm×(D)93mm




Video
标签模块

标签模块

副标题

Overview
Parameter
Product
Case
Overview

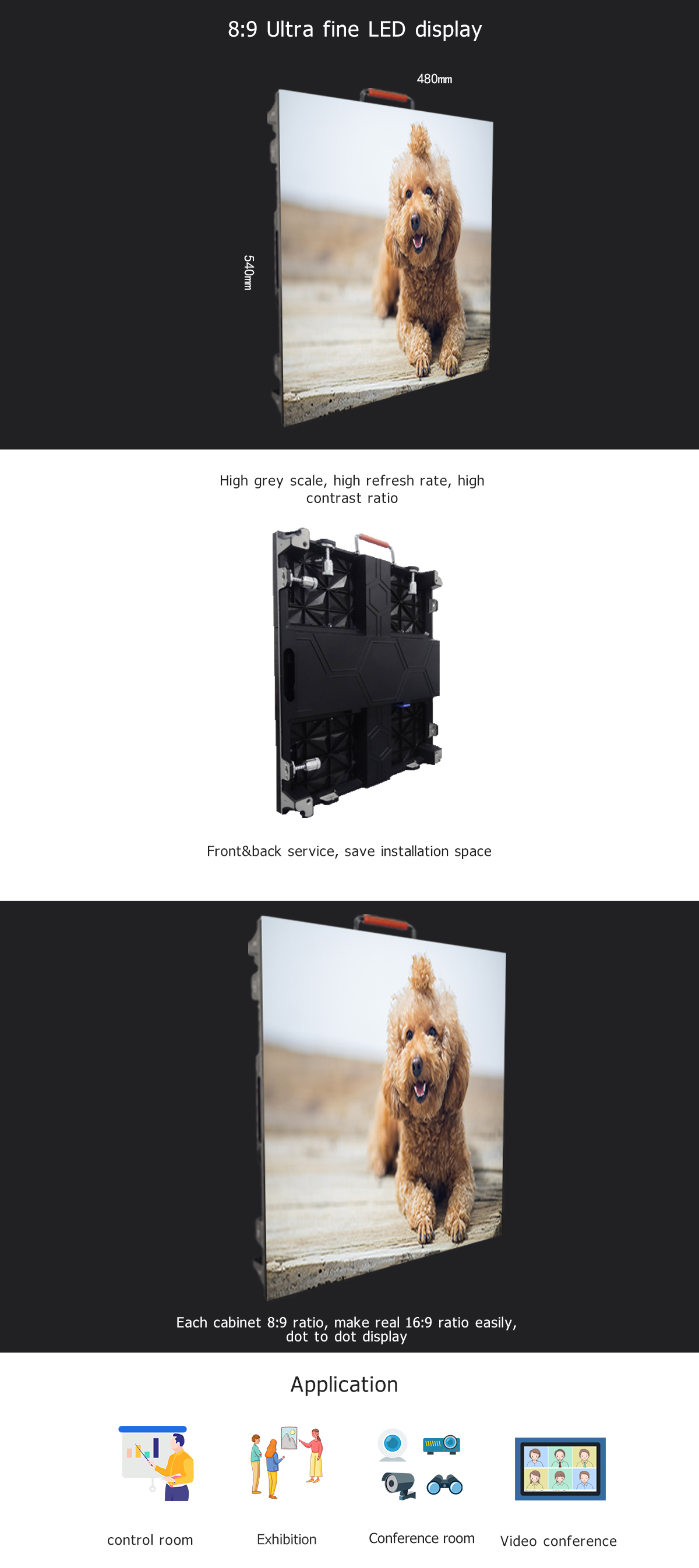

Ultra fine LED display

Parameter
ItemsSpecification
Product ModelU218U219U220U225
Pixel Pitch（mm）1.8751.93522.5
Cabinet Size（mm）(W)480*(H)540*(D)68mm（include the Thickness of module）
(W)480*(H)540*(D)93mm（include the Thickness of module）
Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Quantity（(kg/pcs)6666
Brightness≥800cd≥800cd≥800cd≥800cd
MAX Power consumption(W/㎡)850850850850
Maintenance accessFront serviceFront serviceFront serviceFront service
Refresh Rate（Hz）≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Grey Level（Bit）16161616
Contrast Ratio8000:18000:18000:18000:1
Color Temperature（K）2000K≤TC≤10000K Adjustable
Brightness AdjustmentProgrammable/auto/manual
Color CalibrationBightness and chroma calibration
OthersCommuication-level power supply,hot double backup,temperature and humidity test,multi-singal input support,etc.
＊Notes:Specifications are slightly different according to different configurations.
